Soundwave

Draws the level of a voice, in four looks: capsules over a microphone button, a metering strip for a transcript, a travelling wave for a reply being spoken, and an ambient glow that fills a screen.

It draws a level; it does not record one. Your app owns the recorder and hands over a number between 0 and 1 — so there is no audio dependency here, and the same component works against a real meter, a synthesised one, or a remote peer's. With no level at all it animates plausible motion for the current state, which is enough to build and review a voice screen before any audio exists.

Installation

Soundwave ships with the library — no separate install.

import { Soundwave, Card, Message, MicIcon, Text } from 'panelui-native';

Or copy the source into your project, to own and edit it:

npx panelui-cli@latest add soundwave

Usage

<Soundwave variant="pills" state="listening" level={level} />

Examples

Driving it from a recorder

A recorder reports every 30–60ms. Putting that in React state is dozens of renders a second for a number that only moves pixels, so level also takes a SharedValue — write metering straight into it and nothing above the wave re-renders. A plain number is accepted too, and smoothed identically; it is the right choice for something slow, like a server-side speaking flag.

const level = useSharedValue(0);

useEffect(() => {
  recorder.onMetering(({ db }) => {
    // dBFS is negative and logarithmic; the wave wants 0–1.
    level.value = Math.max(0, (db + 60) / 60);
  });
}, [level]);

<Soundwave variant="pills" level={level} />

A metering strip in a transcript

static gives every bar a band of the current level, for a live meter. scrolling keeps a history that slides across with the newest sample at the trailing edge, for a recording in progress. centered decides whether bars grow from the middle out or up from a baseline.

<Card>
  <Card.Content className="flex-row items-center gap-3 p-4">
    <MicIcon size={18} />
    <View className="flex-1">
      <Soundwave
        variant="bars"
        mode="scrolling"
        centered={false}
        bars={28}
        barWidth={5}
        height={40}
        level={level}
      />
    </View>
    <Text size="sm" muted>0:12</Text>
  </Card.Content>
</Card>

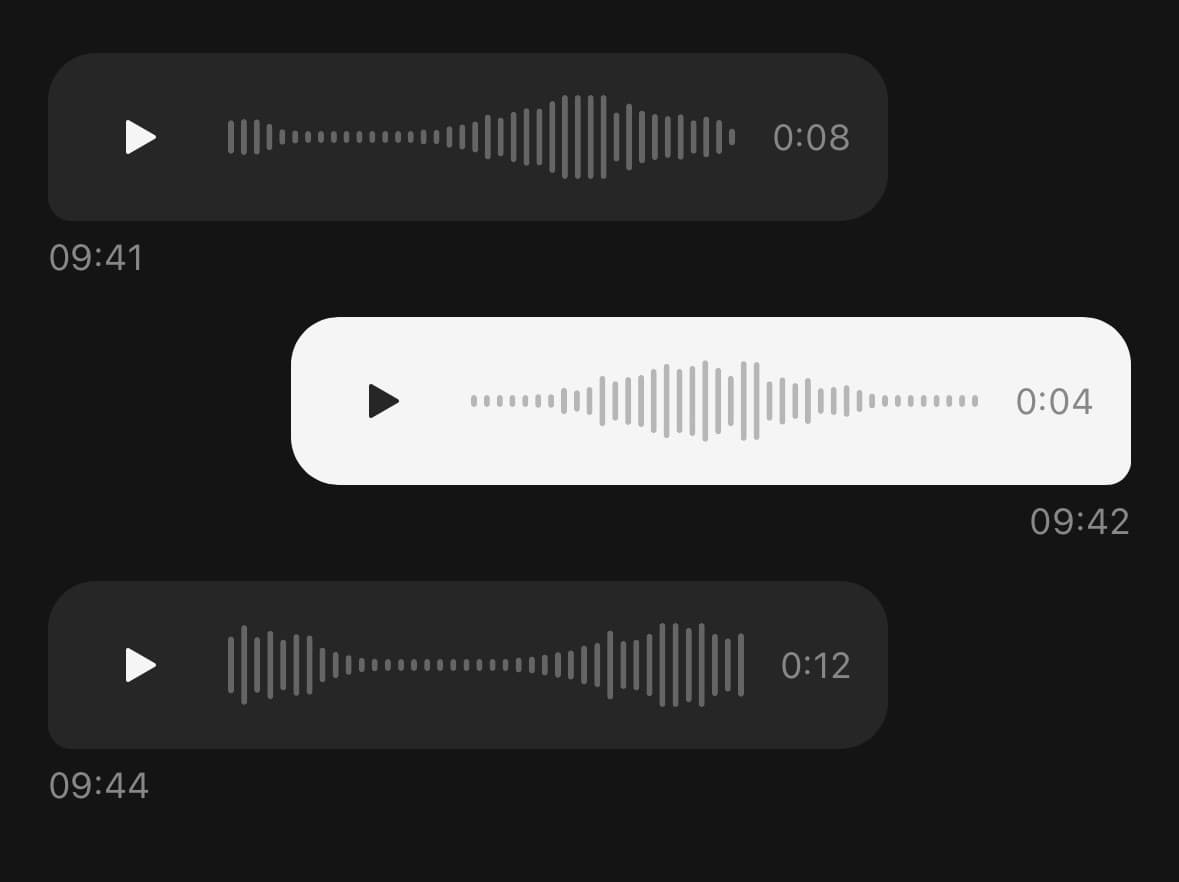

A voice note

levels is the shape of a finished recording — collect the metering while recording and store the numbers beside the file. Supplying it draws the wave still rather than animated, and stops the engine entirely, so a transcript of twenty notes runs no animation at all until one is played. progress is the playhead: bars behind it keep full ink and the rest are dimmed.

const player = useAudioPlayer(note.uri);
const status = useAudioPlayerStatus(player);
const progress = status.duration ? status.currentTime / status.duration : 0;

<Message align="end">
  <Message.Content>
    <Message.Bubble>
      <View className="w-64 flex-row items-center gap-3">
        <Pressable onPress={() => player.play()}>
          <PlayIcon size={16} />
        </Pressable>

        <View className="flex-1">
          <Soundwave
            variant="bars"
            levels={note.levels}
            progress={progress}
            bars={40}
            barWidth={2}
            height={28}
          />
        </View>

        <Text size="xs" muted>0:12</Text>
      </View>
    </Message.Bubble>
  </Message.Content>
</Message>

Real frequency bands

If your app already runs an analysis, hand the bands over directly with levels and bars in static mode draws them instead of synthesising a shape. They are resampled to the bar count, so the two numbers do not have to match.

<Soundwave variant="bars" levels={bands} bars={24} />

The state, when there is no level yet

state always sets what a screen reader announces. With no level supplied it also picks the motion: idle barely breathes, listening and speaking run layered waves at unrelated tempi so neither repeats on a beat, and thinking is slower and shallower than both.

<Soundwave variant="line" state="speaking" />
<Soundwave variant="line" state="thinking" />
<Soundwave variant="line" state="idle" />

Ambient, over a whole screen

ambient positions itself absolutely and takes no touches, so it goes behind a screen's content rather than wrapping it. radius traces the screen's own corners. It takes its colour from --color-info rather than the foreground, since a bloom in the text colour reads as a shadow.

<View className="flex-1">
  <Soundwave variant="ambient" state="listening" level={level} radius={40} />

  <View className="flex-1 items-center justify-center">
    <Text size="xl">Start chatting anytime</Text>
  </View>
</View>

Colour

color takes a literal colour or a theme token name, which resolves against the active theme and follows it into dark mode. gradient paints across the wave instead of one flat ink — left to right for bars and line, up from the bottom edge for ambient. trackColor sets the part of a recording that has not played yet, which otherwise draws as the ink turned down.

{/* Follows the theme. */}
<Soundwave variant="bars" color="--color-info" />

{/* Or a colour of your own. */}
<Soundwave variant="bars" color="#f97316" />

{/* Across the wave. */}
<Soundwave variant="line" gradient={['#6366f1', '#ec4899', '#f59e0b']} />

{/* Played and unplayed, separately. */}
<Soundwave
  variant="bars"
  levels={note.levels}
  progress={progress}
  color="--color-success"
  trackColor="--color-muted"
/>

Versions

Capsules

The voice-mode screen: a few big capsules over a microphone button. Each capsule runs at its own hashed tempo and phase, so the group responds to one level without moving as a block, and the middle ones lead — a flat profile reads as a progress bar.

<Soundwave
  variant="pills"
  state="listening"
  level={level}
  height={120}
  barWidth={34}
  barGap={12}
/>

Metering bars

The same strip in both modes, at the size it is actually used: static bands, a scrolling history, and a compact recording row with a duration beside it.

<Soundwave variant="bars" mode="static" level={level} height={64} />

<Soundwave variant="bars" mode="scrolling" level={level} height={64} />

Travelling wave

One ribbon, tapered to nothing at both ends so it leaves and meets the edges flat instead of stopping at a hard cut. Shown at full size with a state switcher, and again inline under a reply.

<Soundwave variant="line" state="speaking" height={96} />

// Inline in a bubble, where the stroke has to be finer.
<Soundwave variant="line" state="speaking" height={36} barWidth={2} />

Ambient glow

A bloom rising off the bottom edge and a rim of light around the rest, both breathing on the level — a glow that only changes opacity reads as a screen dimming, one that also grows reads as something in the room getting louder.

<Soundwave variant="ambient" state="listening" level={level} radius={40} />

Voice notes

Recorded waveforms in bubbles, filling as they play. Each note stores forty numbers rather than the audio, so the wave draws instantly on scroll — decoding a file to work out a bar chart is work no phone should repeat.

<Soundwave
  variant="bars"
  levels={note.levels}
  progress={progress}
  bars={40}
  barWidth={2}
  height={28}
/>

Recording composer

A composer that turns into a recorder over a live transcript: the last few seconds slide past in scrolling mode while a timer runs, cancel throws the recording away, and send appends it to the thread as a note.

<Soundwave
  variant="bars"
  mode="scrolling"
  level={level}
  bars={32}
  barWidth={3}
  height={36}
/>

API Reference

Soundwave

Every part also accepts the underlying React Native props (ViewProps or TextProps) and a className for Tailwind utilities.

Notes

Nothing here touches the microphone. Recording, permissions and the audio session stay in your app; this takes the number that falls out of them. There is a full walkthrough in Voice — metering, an assistant loop, and voice notes.

Levels are smoothed with a fast attack and a slow release, which is what makes a meter read as a meter — it snaps up on a syllable and falls back gently instead of chattering around every sample. sensitivity multiplies the incoming value before it is clamped, for a quiet source.

Ink follows the surface. A wave inside something that publishes a foreground — a chat bubble, a button — is drawn in that foreground rather than the page's, because a sent bubble is painted in the primary colour and in most themes the primary colour is the text colour. ambient opts out: it is a glow behind a screen, not ink on a surface.

Anything above that is a prop: color (a colour or a theme token name), gradient across the wave, and trackColor for the unplayed part of a recording. Only gradient needs literal colours — resolve tokens with useCSSVariable if you want a themed one.

bars and line are drawn as a single animated SVG path — one segment per bar with a round cap — so forty bars cost one animated prop a frame rather than forty animated views. With progress it is two: one for the played part, one for the rest. Both measure their own width, so they need a parent with one.

paused and the system's reduced-motion setting both hold a representative frame rather than clearing to a flat line: a stopped wave is not an empty one.
